For project quotations, specify the required wattage, CCT, beam distribution, driver input, mounting diameter, order quantity and certification requirements. Final configuration is subject to confirmation.

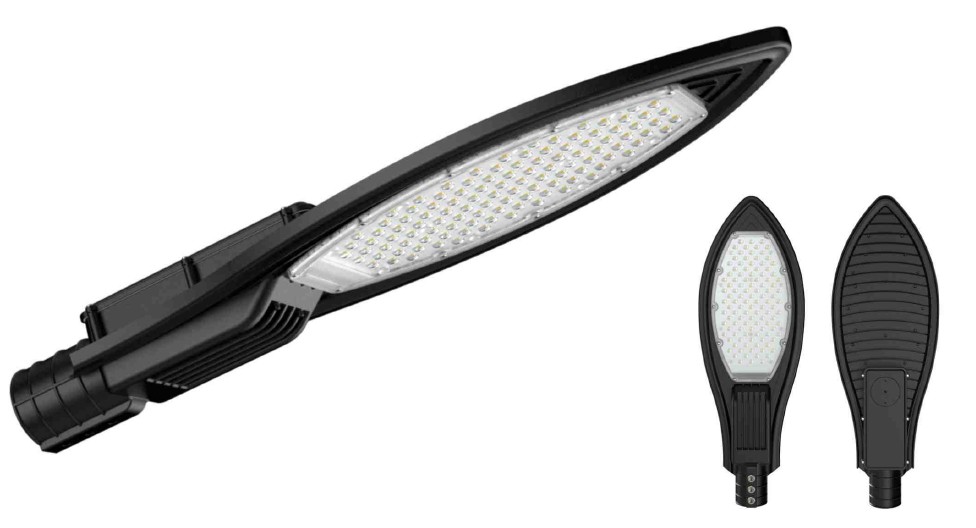

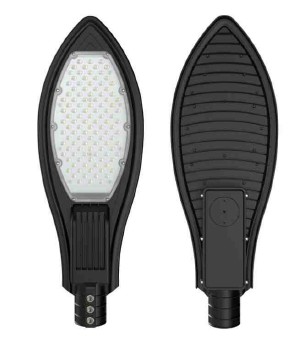

KSCET-124 SMD Sword LED Street Light for roadway and municipal lighting projects. The supplied specification table lists 30–250 W versions with 2835 or 3030 SMD LEDs, die-cast aluminum housing, PC lens options and 50/60 mm pole mounting according to configuration. Confirm driver, CCT, optics, size and certification for the selected variant before ordering.
| Model | Power | Size | Housing N.W. | Material | Pole Dia. | Housing Color | Chips | Chips QTY | PCB Connection |
|---|---|---|---|---|---|---|---|---|---|
| KSCET-124 Model A (Raw Material) | 30W | 445×155×66mm | 720g | Die-cast Aluminum + PC Lens
|
φ50 | Sand Black/Sand Grey
|
2835SMD/3030SMD | 30LED | 6B5C |
| 50W | 550×200×75mm | 910g | φ50 | 50LED | 2B25C | ||||
| 50W-60W | φ50 | 60LED | 12B5C/5B12C | ||||||
| 100W | 700×245×100mm | 1570g | φ60 | 100LED | 2B25C×2 | ||||
| 100W-120W | φ60 | 120LED | 12B5C×2/5B12C×2 | ||||||
| 150W | φ60 | 150LED | 2B25C×3 | ||||||
| 150-165W | 770×280×100mm | 2200g | φ60 | 165LED | 11B5C×3 | ||||
| 200W | φ60 | 200LED | 10B5C×4/2B25C×4 | ||||||
| 250W | φ60 | 250LED | 10B5C×5/2B25C×5 | ||||||
| KSCET-124 Model B (Medium Material) | 50W | 550×200×75mm | 720g | Die-cast Aluminum + PC Lens
|
φ50 | Sand Black/Sand Grey
|
2835SMD/3030SMD | 50LED | 25C2B |
| 50W/60W | φ50 | 60LED | 12B5C/5B12C | ||||||
| 100W | 700×245×100mm | 1250g | φ60 | 100LED | 2B25C×2 | ||||
| 100W/120W | φ60 | 120LED | 12B5C×2/5B12C×2 | ||||||
| 150W | φ60 | 150LED | 2B25C×3 | ||||||
| 150-165W | 770×280×100mm | 1770g | φ60 | 165LED | 11B5C×3 | ||||
| 200W | φ60 | 200LED | 10B5C×4/2B25C×4 | ||||||
| 250W | φ60 | 250LED | 10B5C×5/2B25C×5 |
