Series: KSLL2036
Power: 12W
Input Voltage: DC24V
Dimensions (W × H × L): 20 × 36 × 1000 mm
Light Color: Single Color / RGBW
Single-Color CCT: 3000K / 4000K / 5000K
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90 (Single Color)
IP Rating: IP66
Beam Angle: 120°
Cover Options: Clear / Milky
Material: Aluminum + PC
Available Models:
KSLL2036-12W-DC24-S — Single Color, ON-OFF
KSLL2036-12W-DC24-RGBW — RGBW, DMX512

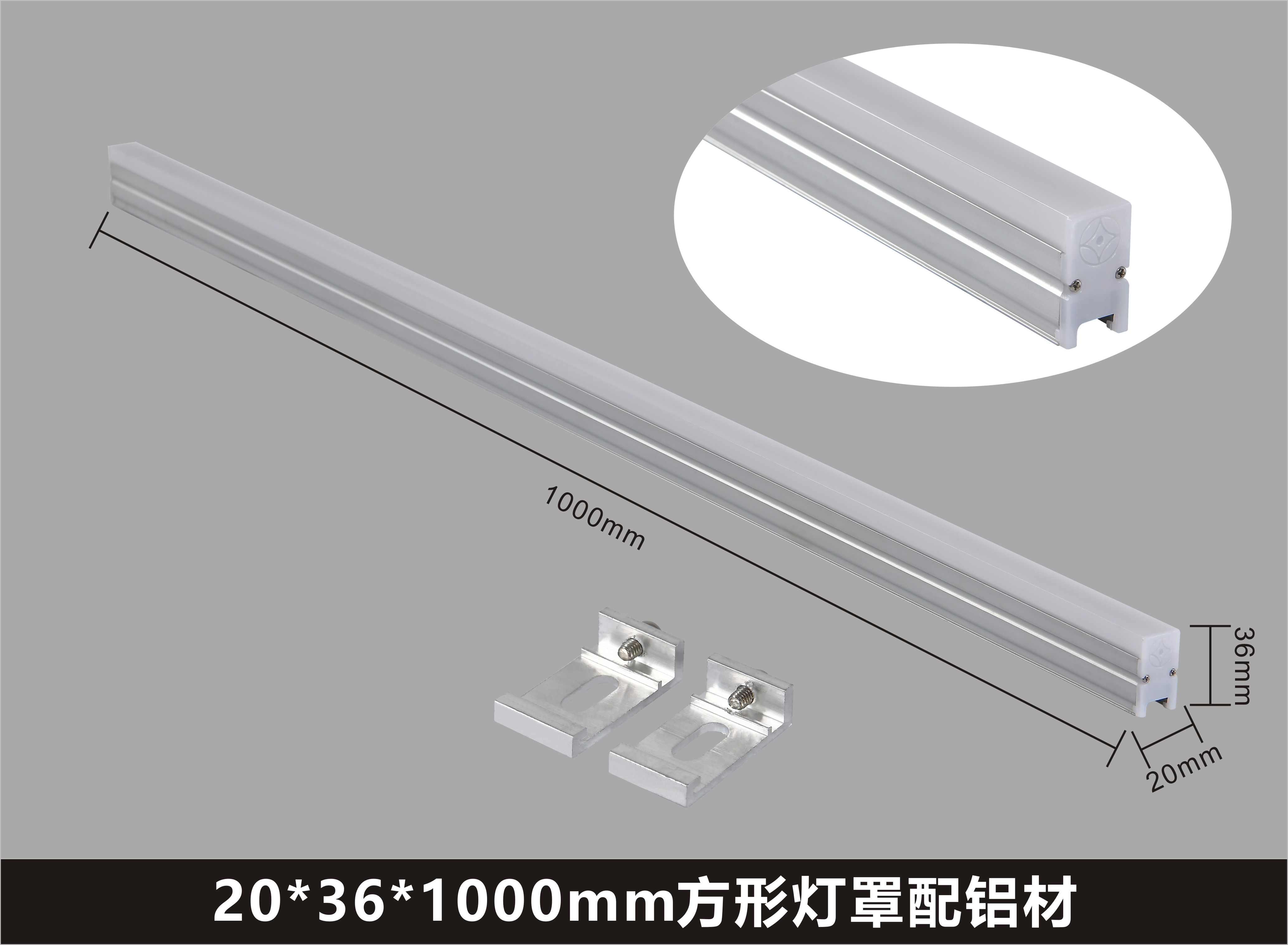

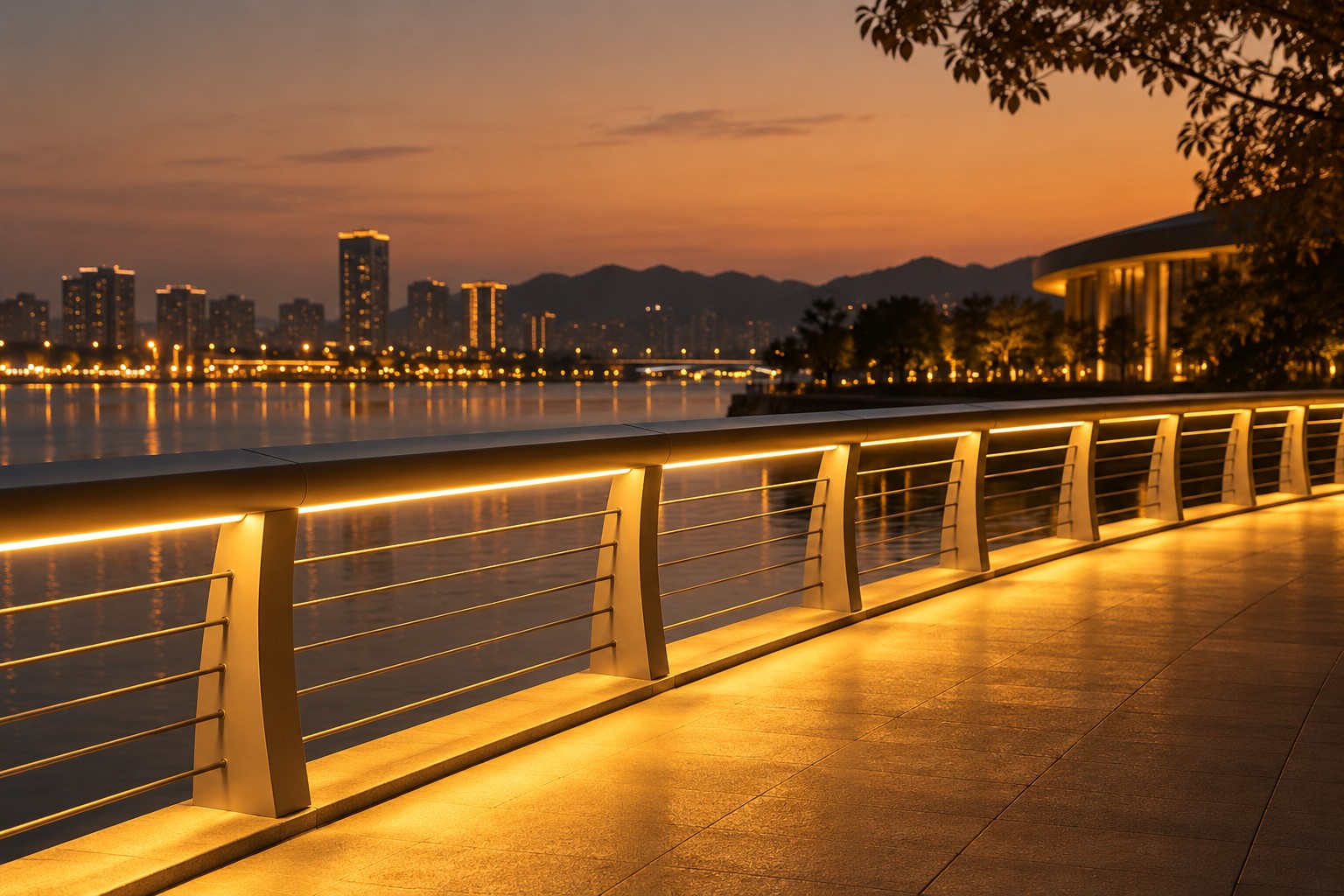

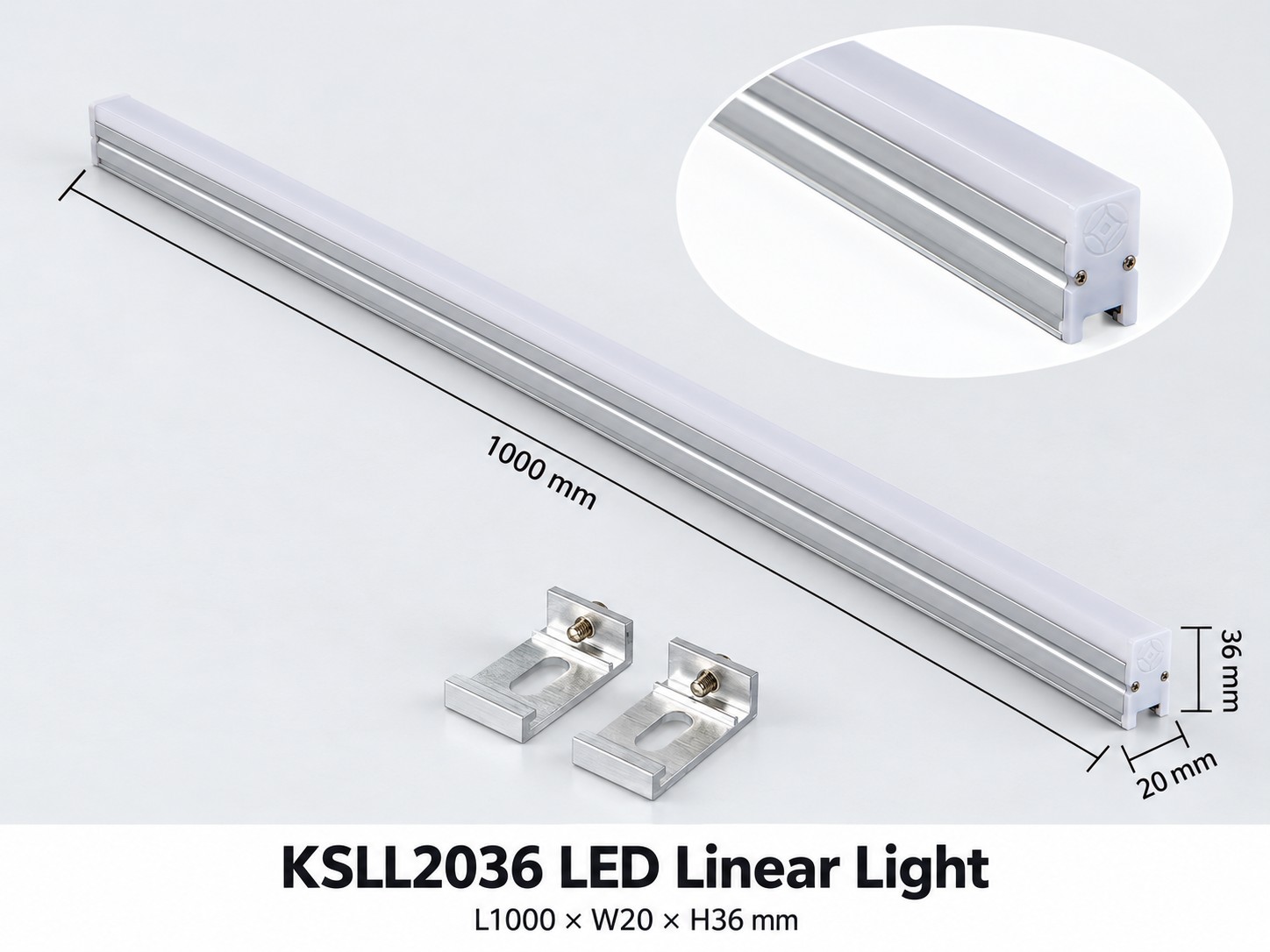

The KONS KSLL2036 is a compact 12W outdoor LED linear light for building outlines, architectural facades, bridges and landscape structures. Its 20 × 36 × 1000 mm body provides a slim profile for architectural lighting installations.
The single-color version offers 3000K, 4000K and 5000K options with ON-OFF operation and CRI ≥90. The RGBW version supports DMX512 control for programmable color-changing effects. Please specify the required configuration when requesting a quotation.
The fixture features an aluminum housing with a PC cover, IP66 protection and a 120° beam angle. Clear and milky covers are available for different lighting requirements.
Both configurations operate on DC24V and require a suitable external power supply. Power supply capacity, cable length, voltage drop and power feed locations should be planned according to the project layout.
KSLL2036-12W-DC24-S: 12W, DC24V, single color, ON-OFF.
KSLL2036-12W-DC24-RGBW: 12W, DC24V, RGBW, DMX512.
KONS supports product selection and customization enquiries for lighting contractors, system integrators, distributors and engineering procurement teams.
For a project quotation, please provide the required quantity, light color, cover type, installation layout and control requirements. For OEM/ODM enquiries, please include your drawings and specifications for review.
Email: konslighting@gmail.com

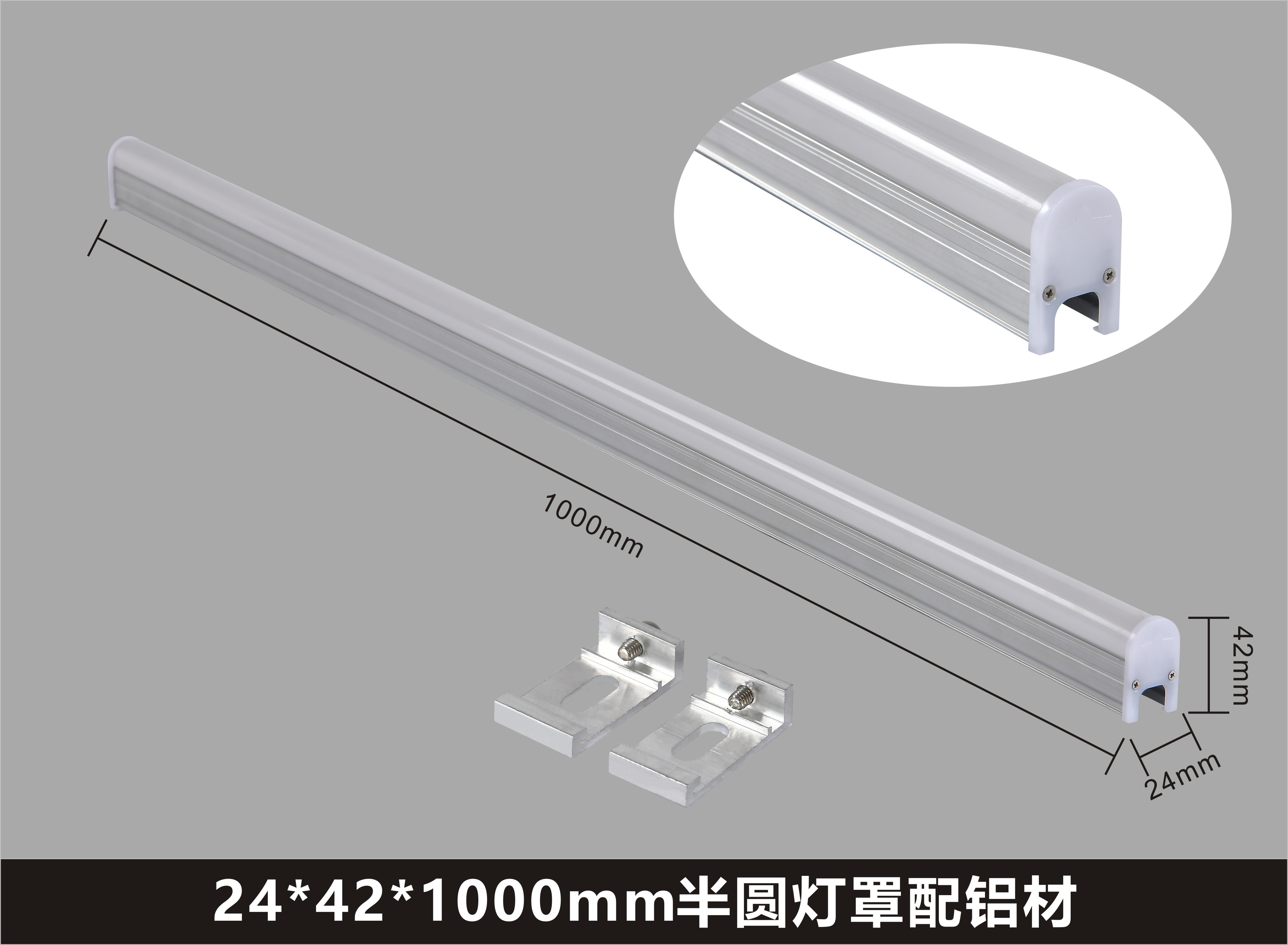

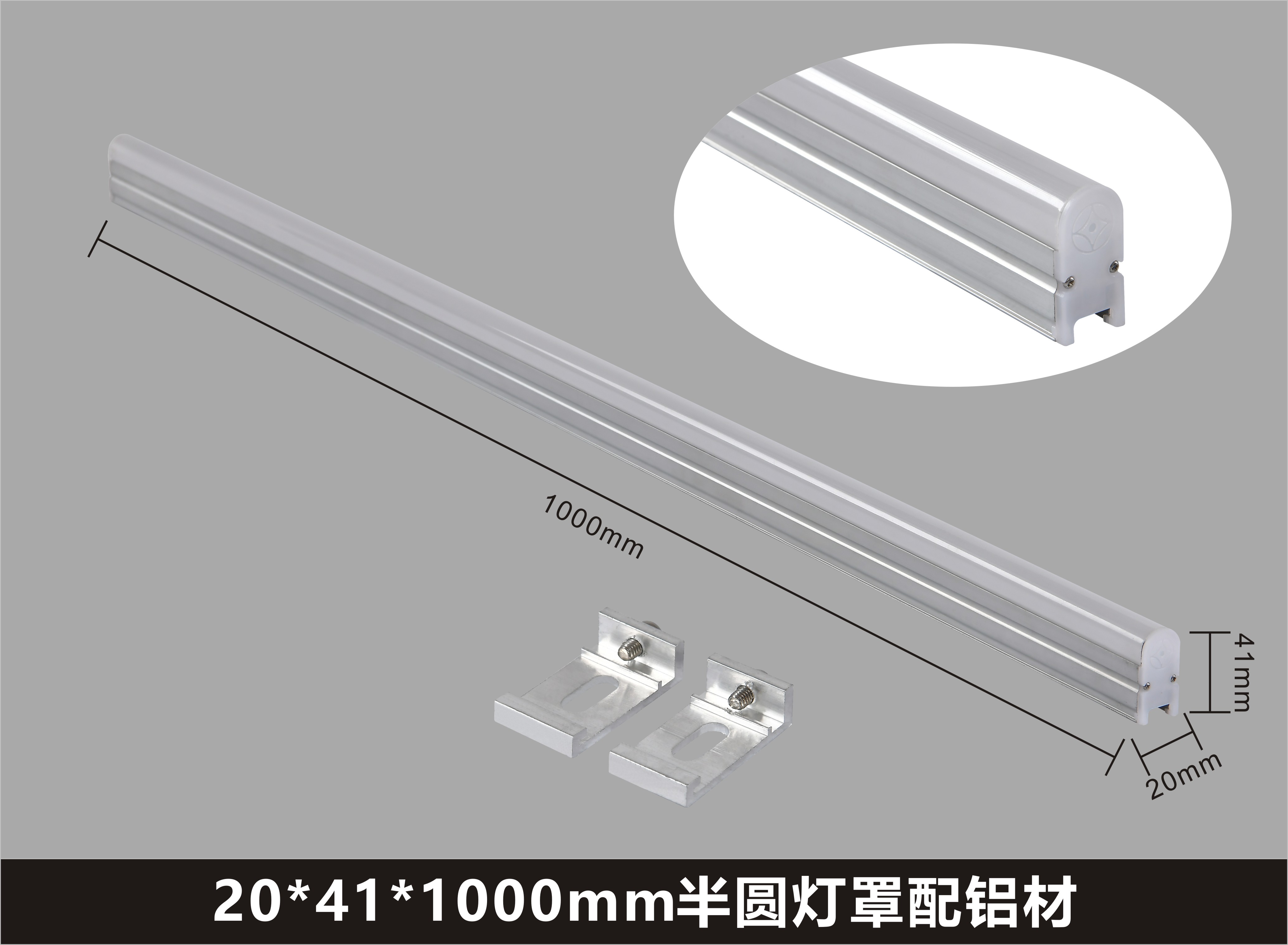

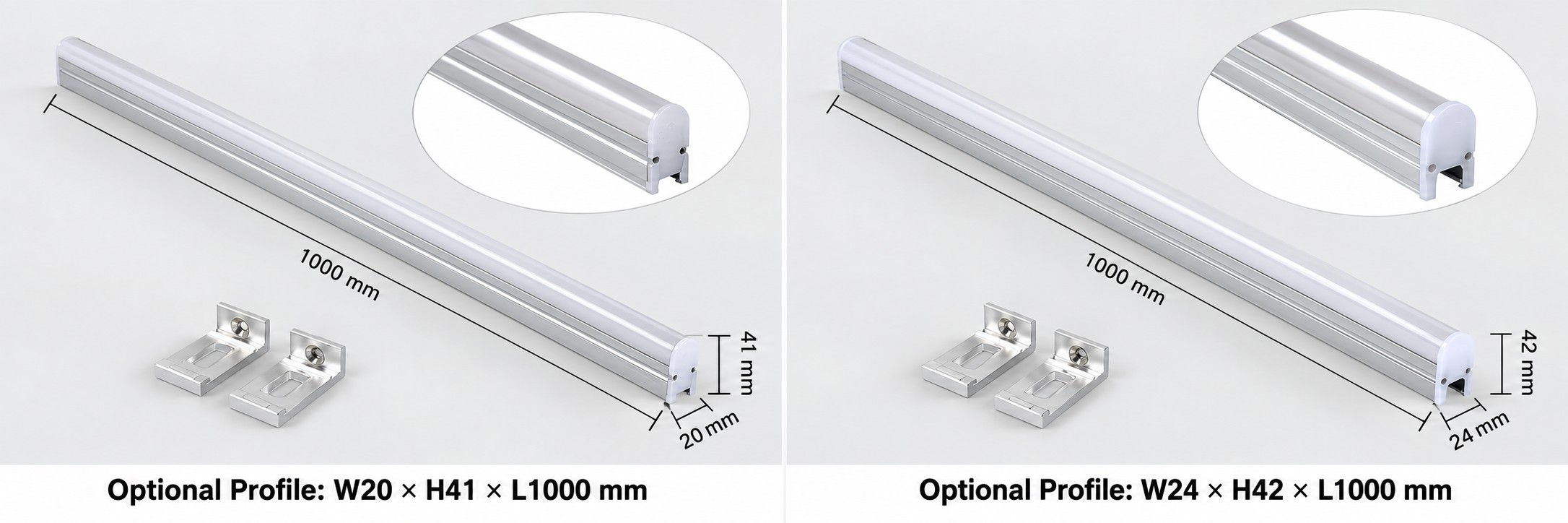

Looking for a different profile size? Other options include 20 × 41 × 1000 mm and 24 × 42 × 1000 mm, offering additional choices for your architectural lighting layout and installation space.
These profiles are separate from the KSLL2036 model shown above. Please contact KONS to confirm the power, light color, control options and specifications for your selected profile.
For project selection or OEM/ODM enquiries, send us your drawings, required quantities and installation requirements.
