Series: KSWW3528
Power per Meter: 18W/m
LED Quantity: 18 per 980 mm fixture
Input Voltage: DC24V / AC100–277V
Light Color: Single Color / RGBW
Single-Color CCT: 3000K / 4000K / 5000K
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90 (Single Color)
IP Rating: IP66
Housing Finish: Matte Grey
Baffle Options: Without Baffle / With Baffle

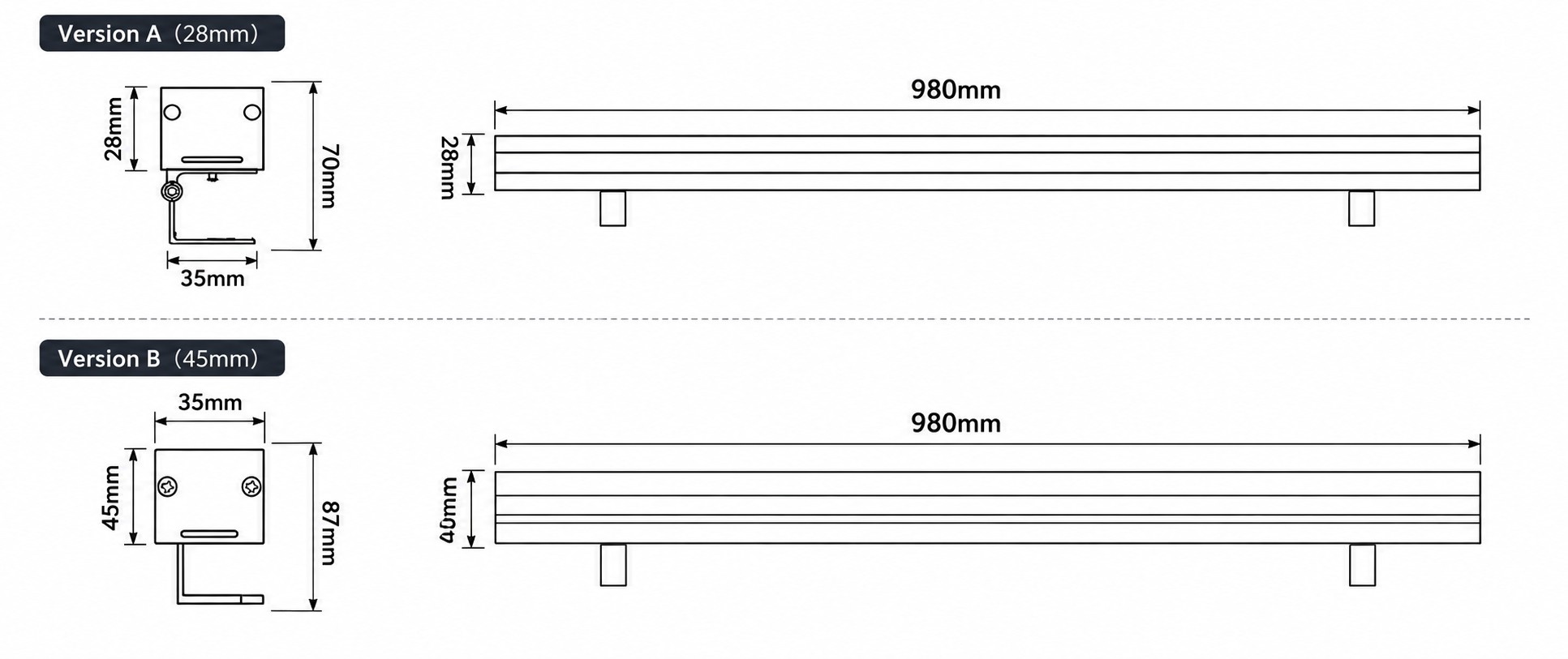

Dimensions (L × W × H):
Without Baffle: 980 × 35 × 28 mm
With Baffle: 980 × 35 × 45 mm
Overall Height Including Mounting Brackets:
Without Baffle: 70 mm
With Baffle: 87 mm
Dimensions exclude the rear-mounted driver enclosure.
Available Models:
KSWW3528-18W-DC24-S
KSWW3528-18W-DC24-RGBW
KSWW3528-18W-AC-S
KSWW3528-18W-AC-RGBW
The “18W” designation in the model codes refers to the rated power per meter: 18W/m
The KONS KSWW3528 is a compact linear LED wall washer for architectural facades, columns, bridges and outdoor landscape lighting projects. Rated at 18W per meter, the series features a matte grey housing, IP66 protection and a fixture length of 980 mm.
Single-color versions offer ON-OFF operation, with 3000K, 4000K and 5000K options.
RGBW versions support DMX512 control for programmable color-changing architectural lighting. Please specify the required configuration when requesting a quotation.

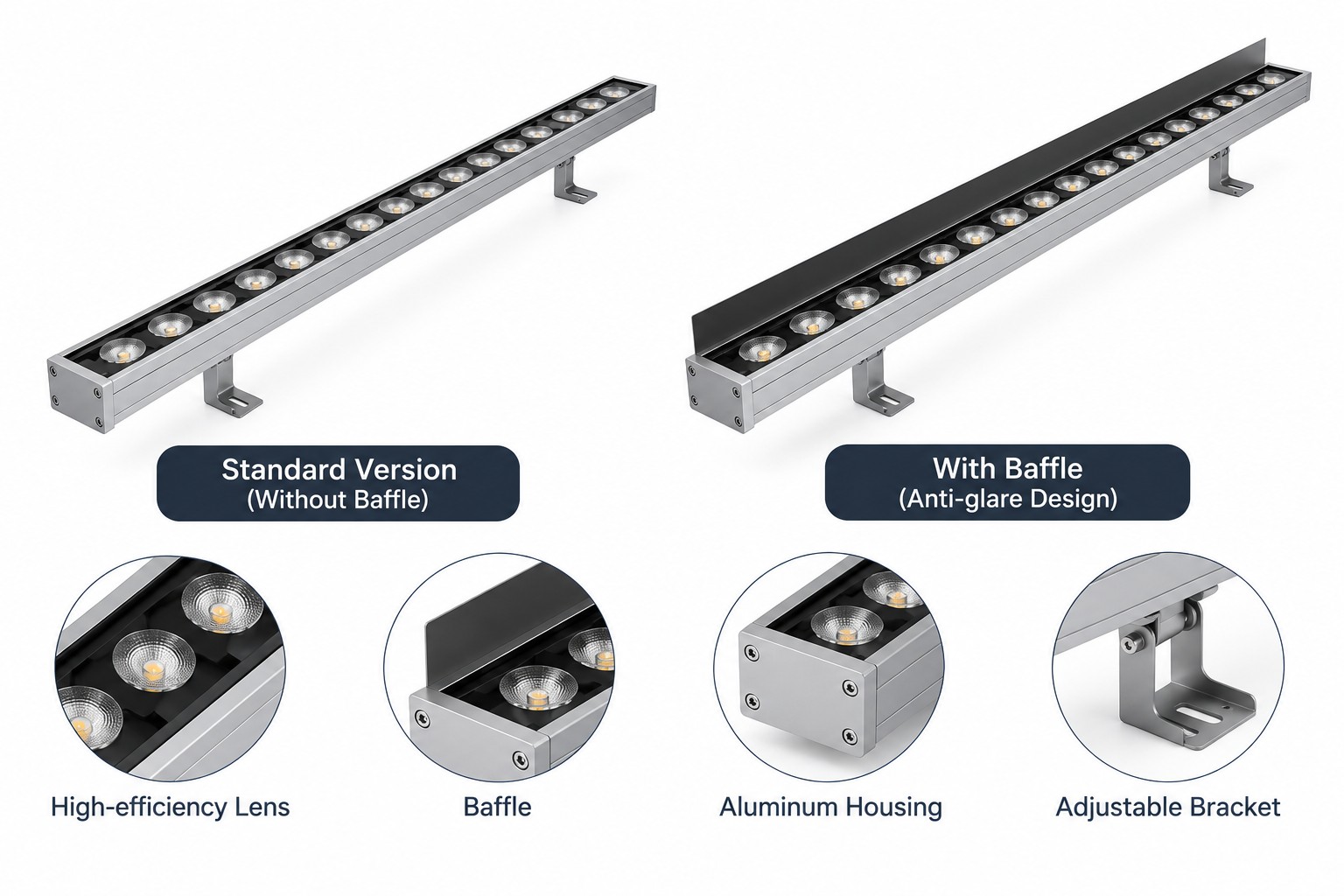

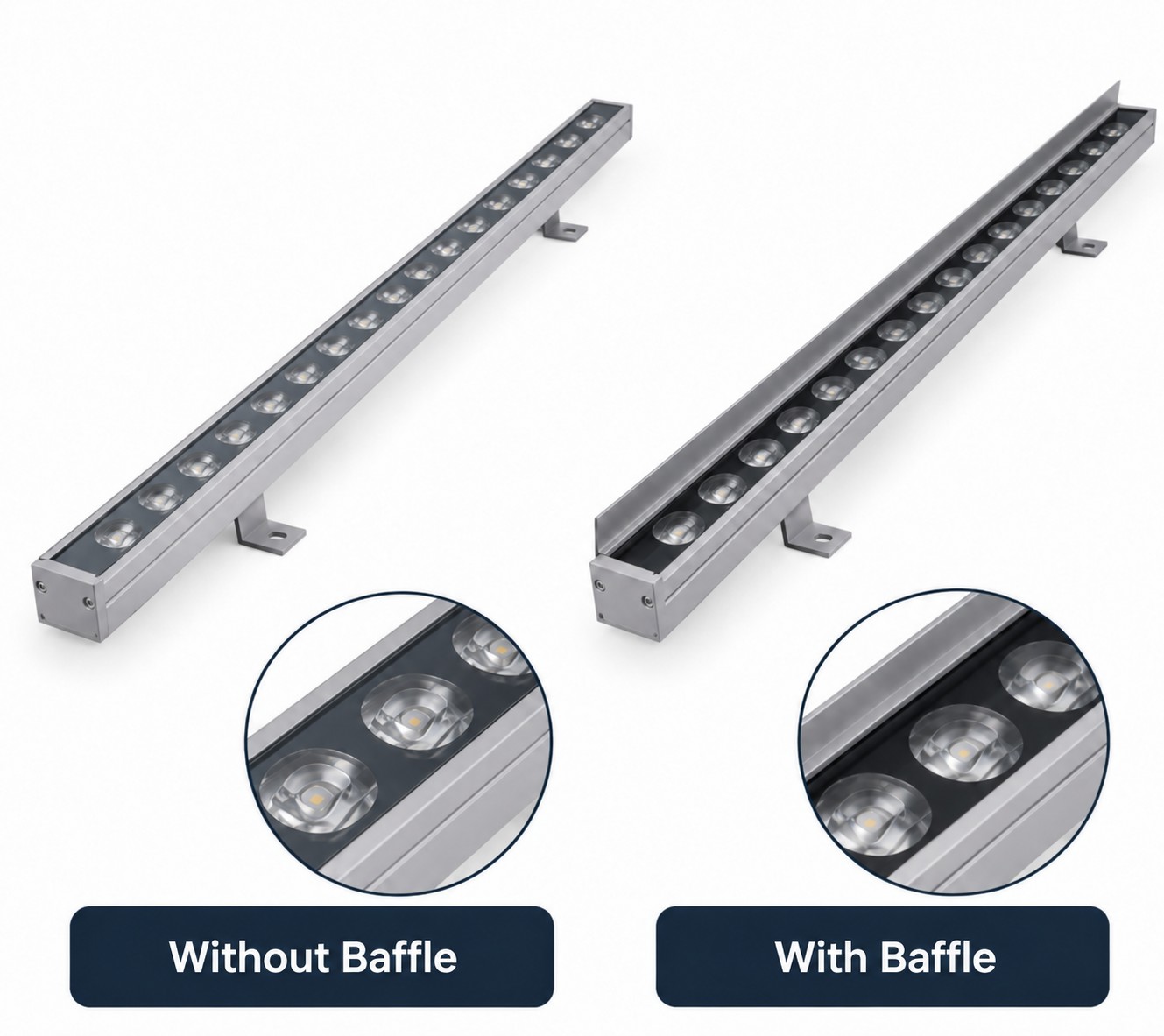

The same fixture series is available with or without a baffle. The baffle helps shield direct views of the light source, depending on the installation position and viewing angle.

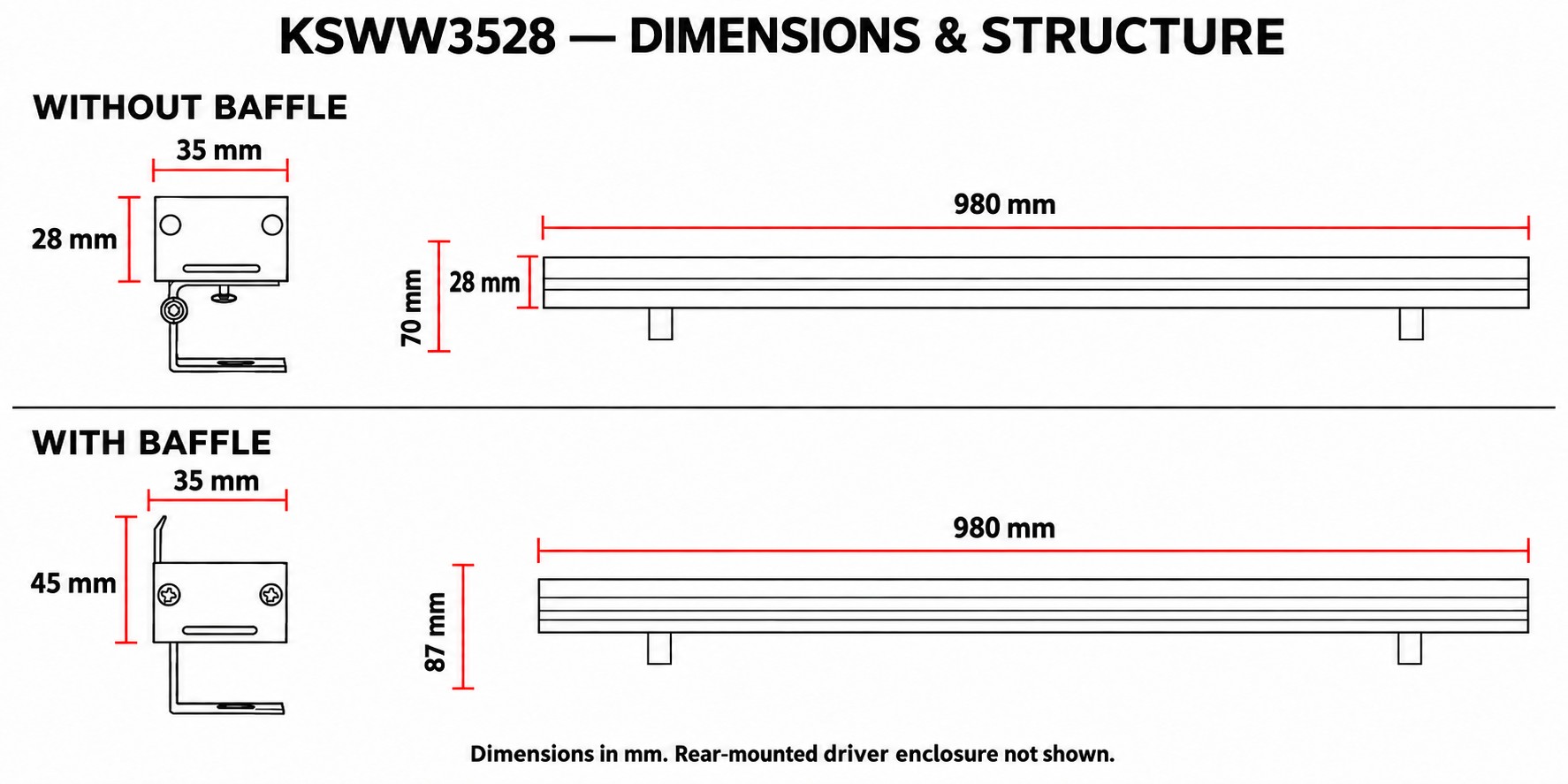

Without baffle, the luminaire body measures 980 × 35 × 28 mm. With baffle, the dimensions are 980 × 35 × 45 mm, including the baffle.
The overall height including mounting brackets is 70 mm without baffle and 87 mm with baffle. These dimensions exclude the rear-mounted driver enclosure.
DC24V versions use an external DC24V power supply. Multiple fixtures can share one power supply, subject to the total load, power supply capacity, cable length and voltage drop.
Power feed locations should be planned according to the project wiring requirements.
Each AC100–277V fixture is equipped with a waterproof LED driver housed in a short enclosure mounted underneath the luminaire body.
The driver enclosure is an additional external component. Please contact us to confirm overall dimensions and installation clearance for the selected configuration.
Adjustable mounting brackets allow the fixture to be aimed toward the illuminated surface. Select the light color, optical configuration and baffle option according to the installation position and intended lighting effect.
For product selection and quotation, please provide:
• Project location and application
• Required quantity
• Single-color CCT or RGBW configuration
• DC24V or AC100–277V input
• Required beam angle
• With or without baffle
• DMX512 control requirements, where applicable
